Trail Camera Detection Zone: How It Works and How to Optimize It

What a Detection Zone Actually Is

A trail camera's detection zone is the three-dimensional area in front of the PIR (passive infrared) sensor where the camera can detect heat-in-motion and trigger a photo or video. It is shaped by two variables: the sensor's horizontal angle (typically 40°–60°) and its maximum range (commonly 60–120 ft). Every placement decision should be built around these two numbers.

How PIR Sensors Create the Zone

PIR stands for passive infrared. The sensor doesn't emit anything. It reads the difference between a moving heat source and the ambient background temperature.

That distinction matters for placement. A deer walking across the frame generates a large, fast-moving thermal contrast. A squirrel dropping straight toward the lens generates almost none, because it isn't crossing the detection beam. The sensor is tuned for lateral movement, and manufacturer spec sheets reflect that assumption.

Moultrie's published documentation for its A-series cameras notes that the listed detection range (up to 100 ft on several models) is measured with a person or large animal moving at 90° to the lens axis. Real-world range drops as the approach angle becomes more head-on. Across dozens of threads on HuntingNet forums, hunters consistently report that front-on deer approaches cut detected range by 30–50% compared to broadside passes.

The sensor's field of view is also narrower than the camera's optical field of view. The camera lens on many models captures 52°–60° of scene. The PIR sensor on the same unit might cover only 40°–45°. Bushnell's spec pages for the Core series list both figures separately, explicitly. When hunters don't account for this gap, animals can appear in photos without triggering any photo at all, because they entered the optical zone but bypassed the PIR cone.

Temperature affects sensitivity too. According to technical notes published by Reconyx, PIR sensors perform most reliably when ambient air temperature is 10°F or more below an animal's body temperature (roughly 101°F for deer). On hot summer afternoons when air temps push above 85°F, the thermal contrast shrinks and detection reliability drops. Tennessee's TWRA hunter education materials advise checking cameras more frequently in summer months precisely because of this effect. Plan placement schedules accordingly.

Detection Zone Geometry: The Numbers You Need

Three critical measurements define a camera's actual coverage, and hunters should know all three before mounting anything.

PIR horizontal angle. Most budget cameras list 40°–45°. Mid-range and premium units often reach 52°–60°. The Browning Strike Force Pro XD, for example, publishes a 60° PIR angle, which gives roughly 126 ft of lateral coverage at 60 ft of depth (calculated as 2 × 60 × tan(30°)).

Maximum detection range. Spec-sheet figures are measured under ideal conditions: a large animal, cool ambient temperature, perpendicular approach. Shaving 25–35% off the published number provides a sound planning baseline. The Strike Force Pro XD lists 120 ft; a conservative planning range is 80–90 ft.

Trigger speed. This is the elapsed time from detection to shutter firing. It is separate from detection range but directly affects whether a fast-moving animal is in frame or partially out. The Strike Force Pro XD publishes a 0.22-second trigger speed. At a brisk deer walk (roughly 4 mph / 5.9 ft per second), the animal moves about 1.3 ft during that lag, well within a properly centered frame. At a full run (15 mph / 22 ft per second), the same camera fires after the animal has moved 4.8 ft. Centering the detection zone on the trail rather than the edge of the trail compensates for this.

Sensor height. Mounting guidance from Reconyx recommends 24–36 inches above the ground for most deer applications. Below 20 inches increases false triggers from ground-level brush. Above 42 inches angles the PIR beam downward too steeply, compressing the effective range.

One more number worth noting: verified Amazon buyers reviewing the Strike Force Pro XD across 1,400+ ratings frequently mention that the 8-AA battery configuration sustains 6–8 months of operation at moderate trigger volumes, which reduces how often hunters need to enter the detection zone and potentially spook target animals.

How to Optimize a Detection Zone

Step 1: Map the travel corridor first

Scouts should walk the area and locate the most defined travel path: a trail, a pinch point between cover, or a food-plot edge. Cameras placed so animals walk across the PIR cone (rather than toward it) produce significantly higher detection rates. Sketching or photographing the setup point before mounting reduces errors.

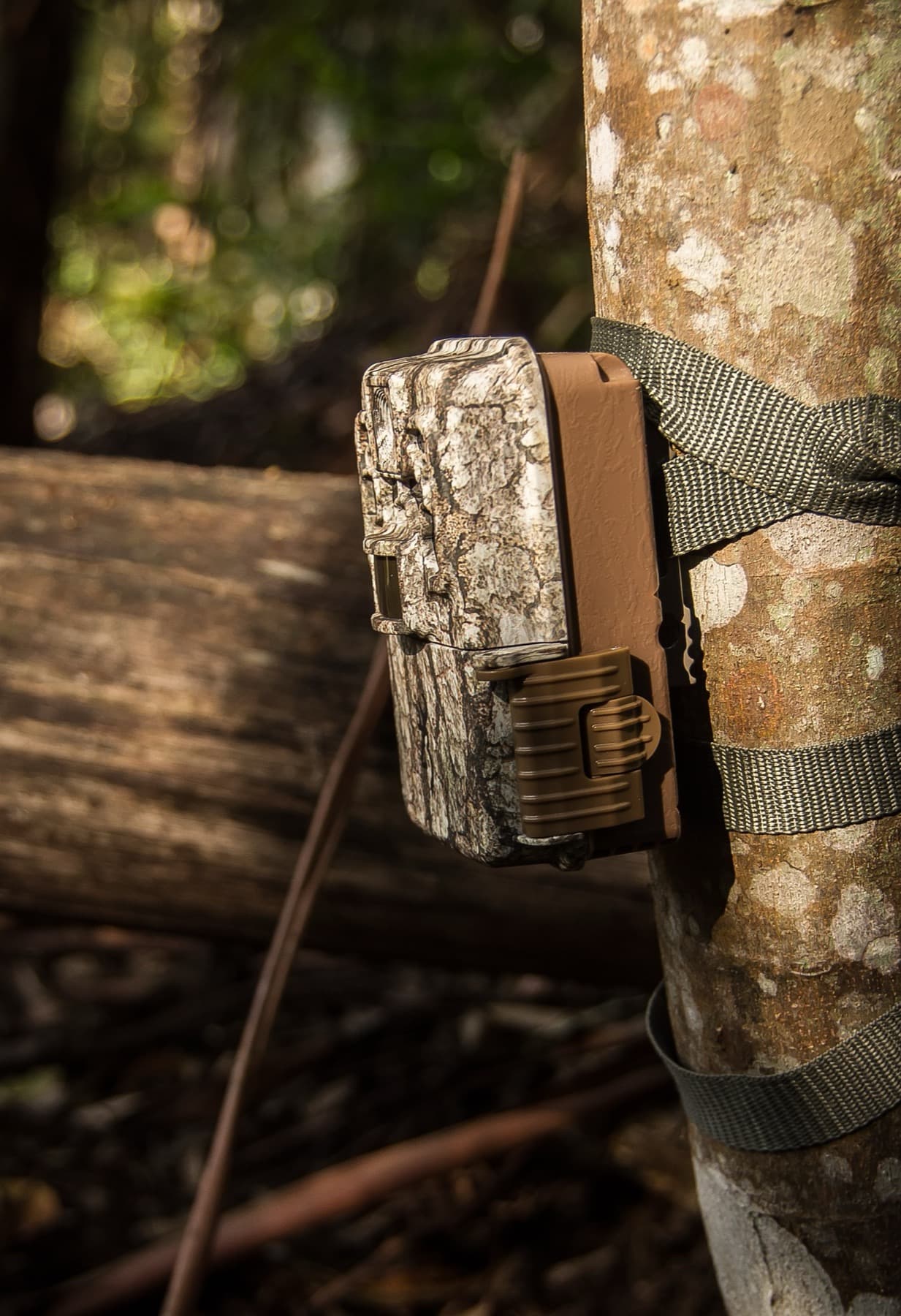

Step 2: Set mounting height to 28–32 inches

A tape measure is more reliable than eye estimation here. At 28–32 inches, the PIR beam intersects a deer's chest cavity on level ground. Mounting height should increase to 36 inches on downhill slopes where the ground drops away from the camera, and decrease to 24 inches when covering a wallow or scrape where animals hang their heads low.

Step 3: Angle the camera 10°–20° off perpendicular

Pointing the camera dead-perpendicular to a trail maximizes the crossing angle for the PIR sensor, which is good. Rotating the camera 10°–20° to face slightly into the direction of travel gives a longer view of each animal and more usable images per event. Placement photo threads on SaddleHunter and ArcheryTalk forums consistently show experienced hunters favoring this angled approach.

Step 4: Clear the zone between camera and target trail

At 30 ft, even a small branch swaying in wind can fill enough of the PIR cone to trigger a false capture. Cutting or tying back vegetation within a 6-ft-wide corridor from the camera to the trail reduces false triggers more than any sensitivity-setting adjustment, based on guidance published in Pennsylvania Game Commission deer management resources.

Step 5: Run a walk-test before leaving

Walking the trail from 90 ft in, crossing at the intended animal location, and reviewing the camera's preview screen confirms correct setup. If only legs appear in the image, the camera needs to come down. If the subject is cropped at the head, raising the mount or tilting slightly downward corrects the framing.

Step 6: Verify the target range with a reference object

Placing a marker (a blaze-orange stake works well) at the intended maximum detection distance, typically 40–60 ft for a focused setup, gives a concrete reference point. Walking to it and back toward the camera confirms whether the camera triggers at or beyond the stake. If it doesn't trigger until significantly closer, clearing additional vegetation or reducing the sensitivity setting by one increment and retesting is the recommended correction.

Common False-Trigger Causes and Fixes

False triggers are the primary reason hunters pull cameras early or miss the active period on a good location. They also drain batteries faster than animal activity does.

Vegetation movement is the leading cause. A single grass stem at mid-frame can generate repeated false events on warm, windy days when ambient temperature is close to the stem's surface temperature. The fix is physical: clear the zone, or reposition the camera to face a background (a tree trunk, a fence line) that doesn't move.

Sun angle is the second cause. Direct sunlight moving across the PIR field creates a slow but detectable thermal gradient. Trail camera guidance from the Pennsylvania Game Commission recommends orienting cameras north or south whenever possible, keeping the lens out of the east-to-west sunrise/sunset arc. When a north/south mount isn't practical, a brim-style camera housing extension or a stick-on lens shade reduces direct solar interference.

Small animals are the third cause. Squirrels, raccoons, and turkeys move erratically and trigger cameras constantly at active sites. Raising camera height to 30–32 inches eliminates most squirrel triggers without meaningfully affecting deer detection.

Sensitivity settings deserve a specific mention. Documentation for the Strike Force Pro XD includes three sensitivity modes: Low, Normal, and High. Aggregated feedback from verified Amazon buyers suggests that Normal sensitivity at 30–40 ft produces the lowest ratio of false events to real animal captures in most woodland settings. High sensitivity is best reserved for food plots at longer range where maximum detection reach is the priority.

The Camera We Recommend for This Application

The Browning Strike Force Pro XD ($169.99) is the camera aggregated research and review data points to when the priority is wide detection-zone coverage without a cellular subscription. Its 60° PIR angle covers a broader lateral arc than most cameras in the sub-$200 category, and the 0.22-second trigger speed keeps fast-moving animals in frame at typical trail distances. The 24-megapixel sensor delivers enough resolution to confirm specific animals from a single card pull.

For a broader look at where to position any camera once its detection zone is understood, the Best Trail Camera Placement Tips (2026) article covers terrain-specific strategies in detail. Hunters adding remote access to their setup can find a full walkthrough in How to Set Up a Cellular Trail Camera.
